Description
Flexibility of cooking zones
- Cooking zone front left: 145 mm, 1.2 KW
- Cooking zone rear left: 180 mm, 2 KW
- Cooking zone rear right: 145 mm , 1.2 KW
- Cooking zone front right: 180 mm, 2 KW
- TouchSelect Basic: control the power with imprinted +/- touch buttons.
- Variable 9-stage power settings for each zone: precisely adapt the heat with 9 power levels.
- Quick Stop: quickly switch off a cooking zone with one longer touch.
- 60 cm: space for 4 pots or pans.

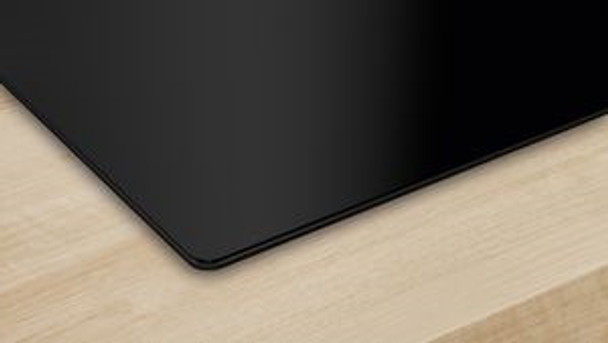

- Frameless design
- Control panel lock: prevent unintended activation of the hob.
- Main on/off switch: switch off all cooking zones at the touch of a button.
- Power on indicator light: indicates if the hob is heating.
- Automatic safety shut off: for safety reasons, heating stops after a preset time if not used (possible to customise).
- Dimensions of the product (HxWxD mm): 45 x 592 x 522
- Required niche size for installation (HxWxD mm) : 45 x 560 x (490 - 500)
- Min. worktop thickness: 16 mm
- Connected load: 6.4 KW
- Power cord: 1 m, Cable included
Details
EAN: |
4242005280384 |
Brand Name: |
Bosch |
Features | Benefits: |
The glass-ceramic radiant hob: makes cooking and cleaning especially easy. |
Feature: |
The handy ChildLock locks the control panel to prevent accidental changes in settings. |
Type of Control | Appliances: |
Electronic |
Type of Control Settings: |
front |
Construction Type: |
Built-In |
Installation Type: |
Built-In |
Safety Features: |
childproof lock, Safety time-switch-off |
Energy Input: |
Electric |
Appliance Voltage (V): |
220-240 |
Appliance Frequency (Hz): |
50; 60 |
Approval Certificates: |
CE, Eurasian, VDE |
Plug Type: |
no plug |
Cooker | Oven Time Options: |
No delay options |
Type of Frame: |
Frameless |
Type of Regulation: |
Stepless energy regulated |
Type of Lid: |
Without |
Residual Heat Indicator Type: |
Separate |
Heating Element Type: |
Radiant heating |
Heating Element Type 3: |
Radiant heating |
Heating Element Type 7: |
Radiant heating |
Heating Element Power: |
1.2 |
Heating Element Power 3: |
2 |
Heating Element Power 5: |
1.2 |
Heating Element Power 7: |
2 |
Heating Element Location: |
front left |
Heating Element Location 2: |
center left |
Heating Element Location 3: |
back left |
Heating Element Location 4: |
middle back |
Heating Element Location 5: |
back right |
Heating Element Location 6: |
center right |
Heating Element Location 7: |
front right |
Heating Element Location 8: |
front middle / central |
Heating Element Location 9: |
front centre/cent |
Automatic Programs: |
No |
Ignition System: |
No |
Main On | Off Switch: |
Yes |
Cooker | Over Automatic Programs: |
No |
Compartment Timer: |
No |
Power On Indicator: |
Yes |
Cord Length: |
100 Centimetre |
Min Niche Height: |
490 Millimetre |
Max Niche Height: |
500 Millimetre |
Min Niche Width: |
560 Millimetre |
Max Niche Width: |
560 Millimetre |
Niche Depth: |
45 Millimetre |
Heating Element Dimension: |
145 Millimetre |
Heating Element Dimension 2: |
180 Millimetre |
Heating Element Dimension 3: |
180 Millimetre |
Heating Element Dimension 4: |
180 Millimetre |
Heating Element Dimension 5: |
145 Millimetre |
Heating Element Dimension 7: |
180 Millimetre |
Country of Origin - Code: |
GERMANY |
Number of Gas Burners: |
0 |
Number of Electric Cooking Zones: |
4 |
Number of Electric Plates: |
0 |
Number of Radiant Plates: |
4 |
Number of Halogen Plates: |
0 |
Number of Induction Plates: |
0 |
Number of Electric Warming Zones: |
0 |
Height: |
45 |
Depth: |
522 |
Consumer Item - Gross Weight: |
8 |
Product Bullet: |
The handy ChildLock locks the control panel to prevent accidental changes in settings. |
Consumer Item - Height: |
45 |
Consumer Item - Depth: |
522 |
Heating Element Type 5: |
Radiant heating |
Hob Type: |
Ceramic |
