Description
Key performance features:
- Energy Efficiency Class: B (at a range of energy efficiency classes from A+++ to D)
- Max. extraction rate: 625 m3/h
- Noise max. Normal Level: Noise, max. speed in normal us: 70 dB dB*
- Push button control for extractor speeds and light
- 3 x power levels
- 2 x 3W LED
- 2 x metal grease filter cassettes
- Integrated hood
- Installation: Between Cupboards
- Mechanical
- Suitable for ducted and re-circulating operation
- For recirculated extraction a recirculating kit or a CleanAir recurculation kit (accessory) is needed
- Noise level according to EN 60704-3 and EN 60704-2-13 at max. normal use exhaust air: 70 dB(A) re 1 pW
- Power rating: 256 W
- Light Intensity: 188 lux
- Colour Temperature: 2700 K
- Electrical cable length 1.5 m
- Blower Efficiency Class: B*
- Lighting Efficiency Class: A*
- Grease Filtering Efficiency Class: C*
- Average Energy Consumption: 68.4 kWh/year*
- Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
- Dimensions exhaust air (HxWxD): 402-402 x 599 x 271 mm
- Dimensions recirculating, chimney (HxWxD): 402-402 x 599 x 271 mm
- Recirculating kit LZ10IMA00
Details
EAN: |
4242003806500 |
Features | Benefits: |

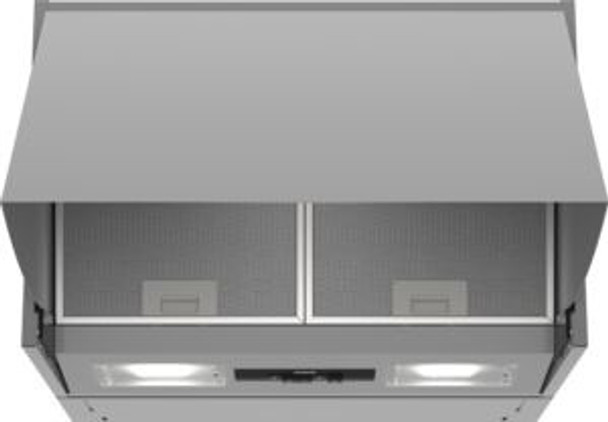

This fold-out integrated hood with a high extraction rate for powerful performance is hidden in the upper cabinet unit. |
Feature: |
LED lights: for optimal visibility and ambience while cooking. |
Brand Name: |
Siemens |
Depth: |
271 |
Typology: |
Built-in/Built-under |
Type of Control | Appliances: |
Mechanical |
Type of Control Settings: |
None |
Construction Type: |
Built-In |
Installation Type: |
Built-In |
Appliance Current (A): |
10 |
Appliance Voltage (V): |
220-240 |
Appliance Frequency (Hz): |
50; 60 |
Approval Certificates: |
CE |
Plug Type: |
GB plug |
Number of Motors: |
1 |
Number of Lights: |
2 |
Cord Length: |
150 Centimetre |
Motor Location: |
Integrated motor in hood body |
Fluid Dynamic Efficiency: |
25.4 |
Fluid Dynamic Efficiency Class: |
B |
Lighting Efficiency: |
29.0 |
Lighting Efficiency Class: |
A |
Grease Filtering Efficiency: |
76.0 |
Grease Filtering Efficiency Class: |
C |
Max Air Flow: |
625 |
Min Air Flow: |
256.0 |
Air Flow Boost: |
0.0 |
Sound Power Max Speed: |
70 |
Sound Power Min Speed: |
49 |
Max Output Air Extraction: |
625 |
Max Output Recirculating Air: |
416 |
Grease Filter Material: |
Washable aluminium |
No Return Air Flow Flap: |
Yes |
Odor Filter: |
No |
Diameter of Air Outlet: |
0 Millimetre |
Country of Origin - Code: |
POLAND |
Consumer Item - Gross Weight: |
13.2 |
Product Bullet: |
LED lights: for optimal visibility and ambience while cooking. |
Consumer Item - Depth: |
271 |
Energy Efficiency Class: |
B |
Supplier SKU: |
LE66MAC00B |
Consumer Item - Height: |
402 |
