Description
Design

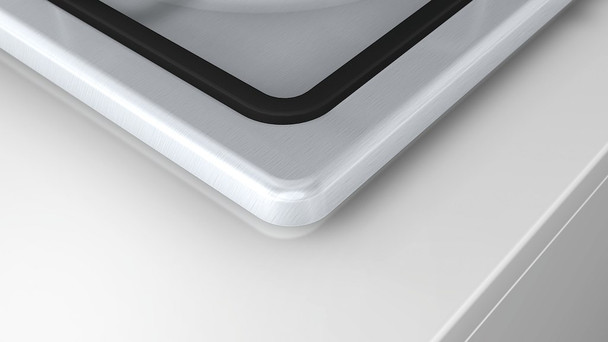

- Stainless steel surface

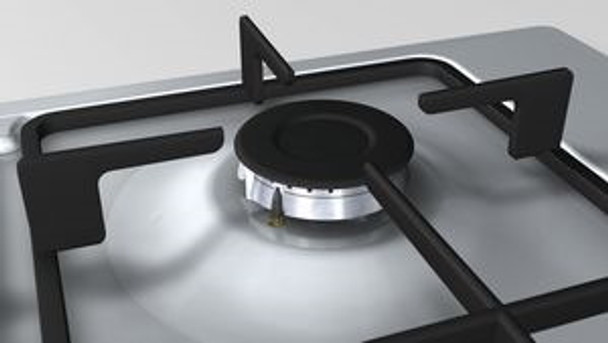

- cast iron finish pan supports with rubber feet

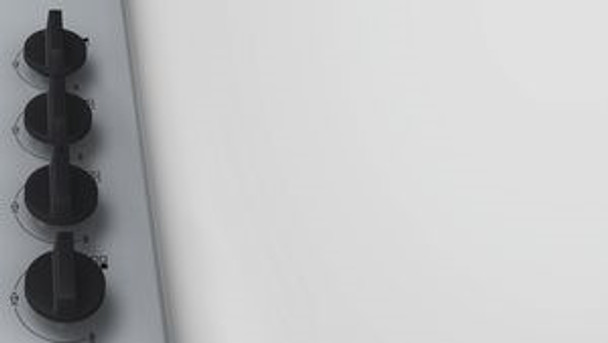

- Design co-ordinated control dials: access knobs on the side with strong grip for effortless turning.
- Ignition via control dials: just push and turn the dials to ignite the flame.

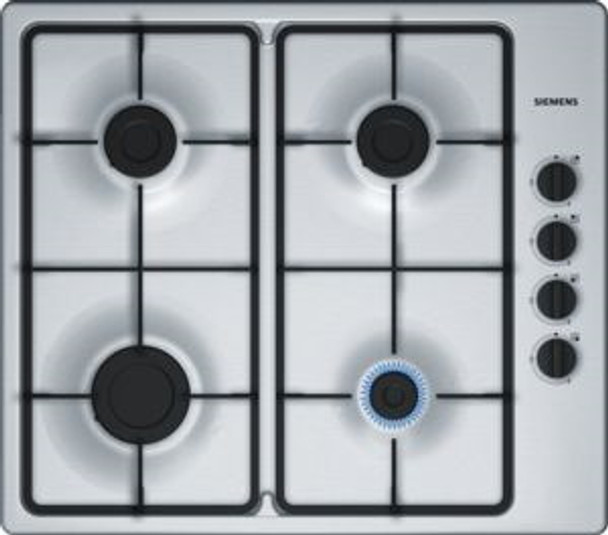

- 4 burner gas hob including:
- Left front: High-speed burner up to 3 KW (depending on gas type)
- Left rear: Standard burner up to 1.7 KW (depending on gas type)
- Right rear: Standard burner up to 1.7 KW (depending on gas type)
- Right front: Economy burner up to 1 KW (depending on gas type)
- Flame failure safety device: prevents unwanted gas flow when flame goes out.
- Usable for: Nat gas L/LL G25/20mbar(DE)
- NG H/E 20mbar, E+ 20/25mbar
- Natural gas H 25 mbar (HU)
- Natural gas L 25 mbar (NL)
- Liquid gas G30,31 28-30/37mbar
- Liquid gas G30 37 mbar (PL)
- Liquid gas 50 mbar
- Factory set for connection to mains gas
- Nozzle set for LPG jets (28-30/37mbar) included. Nozzles for all other gas types can be ordered via the customer service. For nozzle change, please contact the customer service.
- Dimensions of the product (HxWxD mm): 56 x 580 x 510
- Required niche size for installation (HxWxD mm) : 45 x 560 x (480 - 492)
- Min. worktop thickness: 30 mm
- Power cord: 1 m
- Connected load: 7.4 KW
Details
EAN: |
4242003687062 |
Features | Benefits: |
A gas cooktop with side-mounted controls. |
Feature: |
High-quality materials and workmanship – continuous cast-iron finish pan supports. |
Feature: |
Biomethane ready – Power your gas hob with renewable biomethane gas. |
Feature: |
The sword knob combines highest ease of use with modern |
Feature: |
design. |
Brand Name: |
Siemens |
Height: |
45 |
Depth: |
510 |
Type of Control | Appliances: |
Mechanical |
Type of Control Settings: |
sword knobs |
Construction Type: |
Built-In |
Installation Type: |
Built-In |
Safety Features: |
Flame failure safety device |
Energy Input: |
Gas |
Appliance Current (A): |
3 |
Appliance Voltage (V): |
220-240 |
Appliance Frequency (Hz): |
60; 50 |
Approval Certificates: |
CE |
Plug Type: |
no plug |
Power On Indicator: |
No |
Cord Length: |
100 Centimetre |
Min Niche Height: |
480 Millimetre |
Max Niche Height: |
492 Millimetre |
Min Niche Width: |
560 Millimetre |
Max Niche Width: |
562 Millimetre |
Niche Depth: |
45 Millimetre |
Hob Type: |
Gas |
Color of Frame: |
Stainless steel |
Fuel Type: |
Nat gas H/E/(L) 20 (25) mbar |
Alternative Fuel Type: |
Liquid gas G30,31 28-30/37mbar |
Type of Lid: |
Without |
Type of Safety for Gas: |
Electromagnetic for each burner |
Residual Heat Indicator Type: |
Without |
Heating Element Type: |
Gas |
Heating Element Type 3: |
Gas |
Heating Element Type 5: |
Gas |
Heating Element Type 7: |
Gas |
Heating Element Location: |
front left |
Heating Element Location 2: |
center left |
Heating Element Location 3: |
back left |
Heating Element Location 4: |
middle back |
Heating Element Location 5: |
back right |
Heating Element Location 6: |
center right |
Heating Element Location 7: |
front right |
Heating Element Location 8: |
front middle / central |
Heating Element Location 9: |
front centre/cent |
Number of Burners: |
4 |
Number of Gas Burners: |
4 |
Number of Electric Cooking Zones: |
0 |
Number of Electric Plates: |
0 |
Number of Radiant Plates: |
0 |
Number of Halogen Plates: |
0 |
Number of Induction Plates: |
0 |
Number of Electric Warming Zones: |
0 |
Ignition System: |
Yes |
Main On | Off Switch: |
No |
Cooker | Over Automatic Programs: |
No |
Compartment Timer: |
No |
Gas Connection: |
No |
Automatic Programs: |
No |
Cooker | Oven Time Options: |
No delay options |
Country of Origin - Code: |
SPAIN |
Consumer Item - Gross Weight: |
8 |
Colour of Frame: |
Stainless steel |
Feature: |
The uniquely beautiful stainless-steel surface design. |
Product Bullet: |
High-quality materials and workmanship – continuous cast-iron finish pan supports. |
Product Bullet 2: |
Biomethane ready – Power your gas hob with renewable biomethane gas. |
Product Bullet 3: |
The sword knob combines highest ease of use with modern |
Product Bullet 4: |
design. |
Product Bullet 5: |
The uniquely beautiful stainless-steel surface design. |
Consumer Item - Height: |
45 |
Consumer Item - Depth: |
510 |
Supplier SKU: |
EB6B5PB60 |
