Description
Key performance features:
- Energy Efficiency Class: B (at a range of energy efficiency classes from A+++ to D)
- Maximum extraction rate exhaust air 372 m³/h according to EN 61591
- Extraction rate according to EN 61591 ø 15 cm:
- max. Normal use 372 m³/h
- Intensive 604 m³/h
- Noise max. Normal Level: Noise, max. speed in normal us: 60 dB dB*
- TouchControl with Electronic display
- Electronic display
- 3 power levels & intensive setting
- 2 x 1.5W LED light
- Colour Temperature: 3500 K
- Automatic intensive revert (6mins)

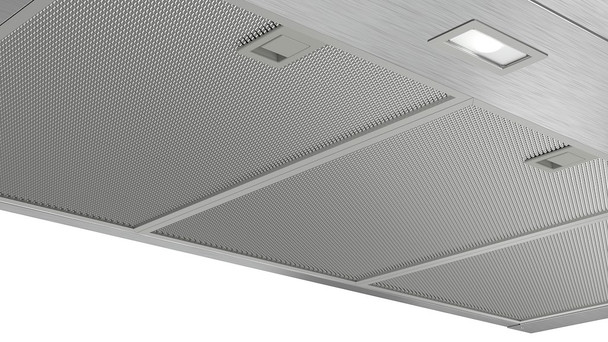

- 3 removable metal grease filter cassettes
- Installation: wall
- Chimney extractor hood
- TouchControl
- Electronic control
- Suitable for ducted or recirculating operation
- For recirculated extraction recirculating kit or CleanAir recirculating kit (accessory) needed
- Max. extraction rate: 604 m3/h
- Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
- Max. normal use: 60 dB(A) re 1 pW
- Intensive: 70 dB(A) re 1 pW
- With the Clean Air Plus recirculation kit (available as optional accessory) your appliances reaches:
- Extraction rate in recirculation mode:
- Max. normal use: 337 m³/h
- Intensive: 441 m³/h
- Noise level in recirculation mode:
- Max. normal use: 70 dB(A) re 1 pW
- Intensive: 74 dB(A) re 1 pW
- Power rating: 220 W
- Light Intensity: 214 lux
- Electrical cable length 1.3 m
- Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
- Dimensions exhaust air (HxWxD): 635-965 x 900 x 500 mm
- Dimensions recirculating (HxWxD): 635-1075 x 900 x 500 mm
- Dimensions recirculating with CleanAir module (HxWxD):
- 703 x 900 x 500 mm - mounting with outer chimney
- 833-1163 x 900 x 500 mm - mounting with telescopic chimney
- Blower Efficiency Class: A*
- Lighting Efficiency Class: A*
- Grease Filtering Efficiency Class: C*
- Average Energy Consumption: 48.5 kWh/year*
- Recirculating kit DWZ1FX5C6
Details
EAN: |
4242005051120 |
Features | Benefits: |
Box design hood: performance and matching kitchen design complete in one hood. |
Feature: |
Especially silent: maximum hood performance, minimum noise. |
Feature: |
TouchSelect control: Quickly select hood settings via touch. |
Feature: |
LED Illumination: The energy-saving lighting provides bright and clear lighting for the hob area. |
Feature: |
Intensive speed setting: removes strong kitchen odours quickly and effectively. |
Feature: |
An impressive extraction rate of m3/h ensures this hood will have your kitchen odour free in no time. |
Brand Name: |
Bosch |
Depth: |
500 |
Typology: |
Wall-mounted |
Type of Control | Appliances: |
Electronic |
Type of Control Settings: |
LED, touch control |
Construction Type: |
Built-In |
Installation Type: |
Built-In |
Type of Light: |
LED |
Appliance Current (A): |
10 |
Appliance Voltage (V): |
220-240 |
Appliance Frequency (Hz): |
50; 60 |
Approval Certificates: |
CE, E17D UKCA marking, VDE |
Plug Type: |
GB plug |
Number of Motors: |
1 |
Number of Lights: |
2 |
Cord Length: |
130 Centimetre |
Chimney Material: |
Stainless steel |
Motor Location: |
Integrated motor in hood chimney |
Fluid Dynamic Efficiency: |
29.0 |
Fluid Dynamic Efficiency Class: |
A |
Lighting Efficiency: |
61.1 |
Lighting Efficiency Class: |
A |
Grease Filtering Efficiency: |
75.6 |
Grease Filtering Efficiency Class: |
C |
Max Air Flow: |
372 |
Min Air Flow: |
222.5 |
Air Flow Boost: |
604.8 |
Sound Power Max Speed: |
60 |
Sound Power Min Speed: |
48 |
Sound Power Boost: |
70 |
Noise Level Boost Position: |
70 |
Max Output Air Extraction: |
372 |
Boost Position Air Extraction: |
604 |
Max Output Recirculating Air: |
337 |
Boost Position Output Recirculating: |
441 |
Grease Filter Material: |
Washable aluminium |
No Return Air Flow Flap: |
No |
Odor Filter: |
No |
Height without Chimney: |
53 Millimetre |
Diameter of Air Outlet: |
0 Millimetre |
Country of Origin - Code: |
GERMANY |
Consumer Item - Gross Weight: |
18.1 |
Product Bullet: |
Especially silent: maximum hood performance, minimum noise. |
Product Bullet 2: |
TouchSelect control: Quickly select hood settings via touch. |
Product Bullet 3: |
LED Illumination: The energy-saving lighting provides bright and clear lighting for the hob area. |
Product Bullet 4: |
Intensive speed setting: removes strong kitchen odours quickly and effectively. |
Product Bullet 5: |
An impressive extraction rate of m3/h ensures this hood will have your kitchen odour free in no time. |
Consumer Item - Depth: |
500 |
Consumer Item - Height: |
53 |
Energy Efficiency Class: |
B |
Supplier SKU: |
DWB96DM50B |
